KUANI KI-1479K ½ SQ. DR. Super Duty Air Impact Wrench with 6pcs Dr Impact socket (14,17,19,21,22,24mm)

KUANI KI-1479K ½ SQ. DR. Super Duty Air Impact Wrench with 6pcs Dr Impact socket (14,17,19,21,22,24mm)

Category: Air Impact Wrench

Specifications
Weight(gram)
4000
Dimension
28 cm (Length) x 9 cm (Width) x 20 cm (Height)
Details

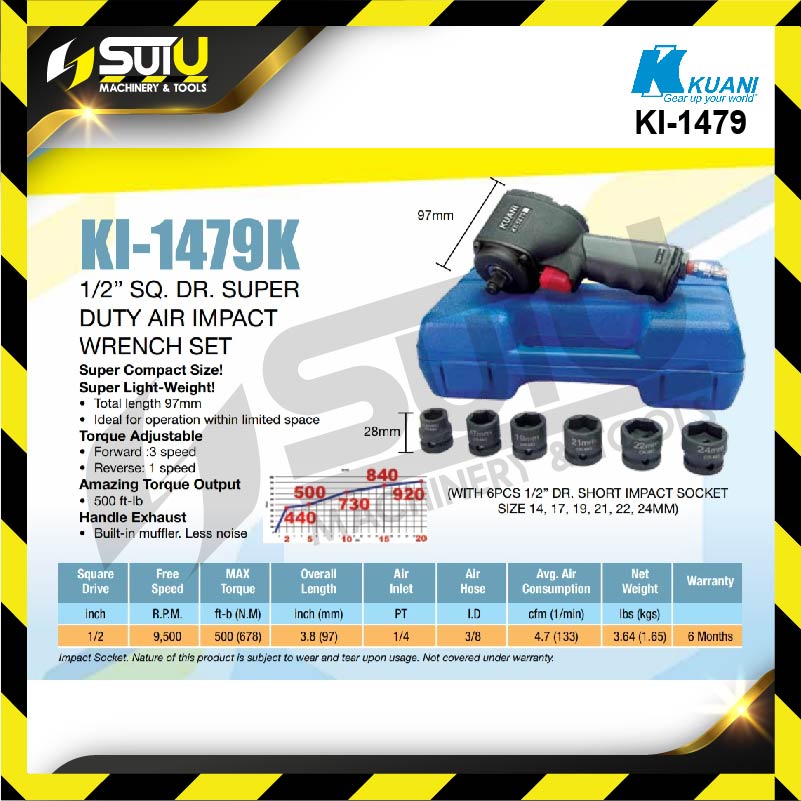

⭐️Kuani KI-1479K⭐️
• Super Compact Size
• Super Light Weight
• Handle Exhaust, Built-in Muffler, Less Noise
• Set included 6pcs 1/2''DR Impact socket 13mm, 17mm, 19mm, 21mm, 22mm, 24mm

⭐️Features⭐️
• 3 positive power settings
• The shortest tool of 97 mm in length
• 500 ft-lb of Max torque in reverse with 9,500 rpm free speed

⭐️Benefits⭐️
• The most compact tool in class; very easy access to limited space
• Excellent working efficiency for fast rundown speed and sufficient torque performance
• Recommended applications: engine bay, automotive chassis and farm vehicles

⭐️Product Details⭐️
Industry Category: Automotive Aftermarket
Application: Assembly Tools
Product Category: Impact Wrench
Frequency of Application: Workshop - High

Dimension
Length 1 -Imperial (inch):3.8
Length 1 -Metric (mm):97

Weight
Imperial (lb):3.64
Metric (kg):1.65

Power
Power Source: Compressed Air
Recommended Air Inlet Pressure (psi):90
Recommended Air Inlet Pressure (bar):6.2
Avg. Air Consumption (cfm):4.7
Avg. Air Consumption (L/min):  133
Air Inlet (inch):1/4
Air Hose I.D. (inch):3/8
Exhaust Direction: Rear exhaust with muffler

Motor
Motor Type: Air rotor
Free Speed (rpm):9,500

Transmission Mode
Torque Transmission Mechanism: Jumbo Hammer clutch

Capability
Working Torque at 5th sec (Nm):678
Working Torque at 5th sec (Ft-lb):500

Holder
Anvil Length (inch):Standard
Anvil Shape: Square Drive (inch)
Anvil Size - Square Drive (inch):1/2

Safety Requirements
Machinery Safety Directives:2006/42/EC
Risk Assessment & Risk Reduction: ISO 12100
Safety Requirements: ISO 11148-6
Noise Level: ISO 15744
Vibration Level: ISO 28927-2

EC Declaration
CE Vib. & Sound Test Report No.:1407008
Sound Pressure db (A):100.2
Sound Power db (B):111.2
Sound Pressure db (C):111
Sound - K db:3
Vibration M/S^2:9.00
Vibration -K:1.39
