Details

---

⭐️FEATURES⭐️

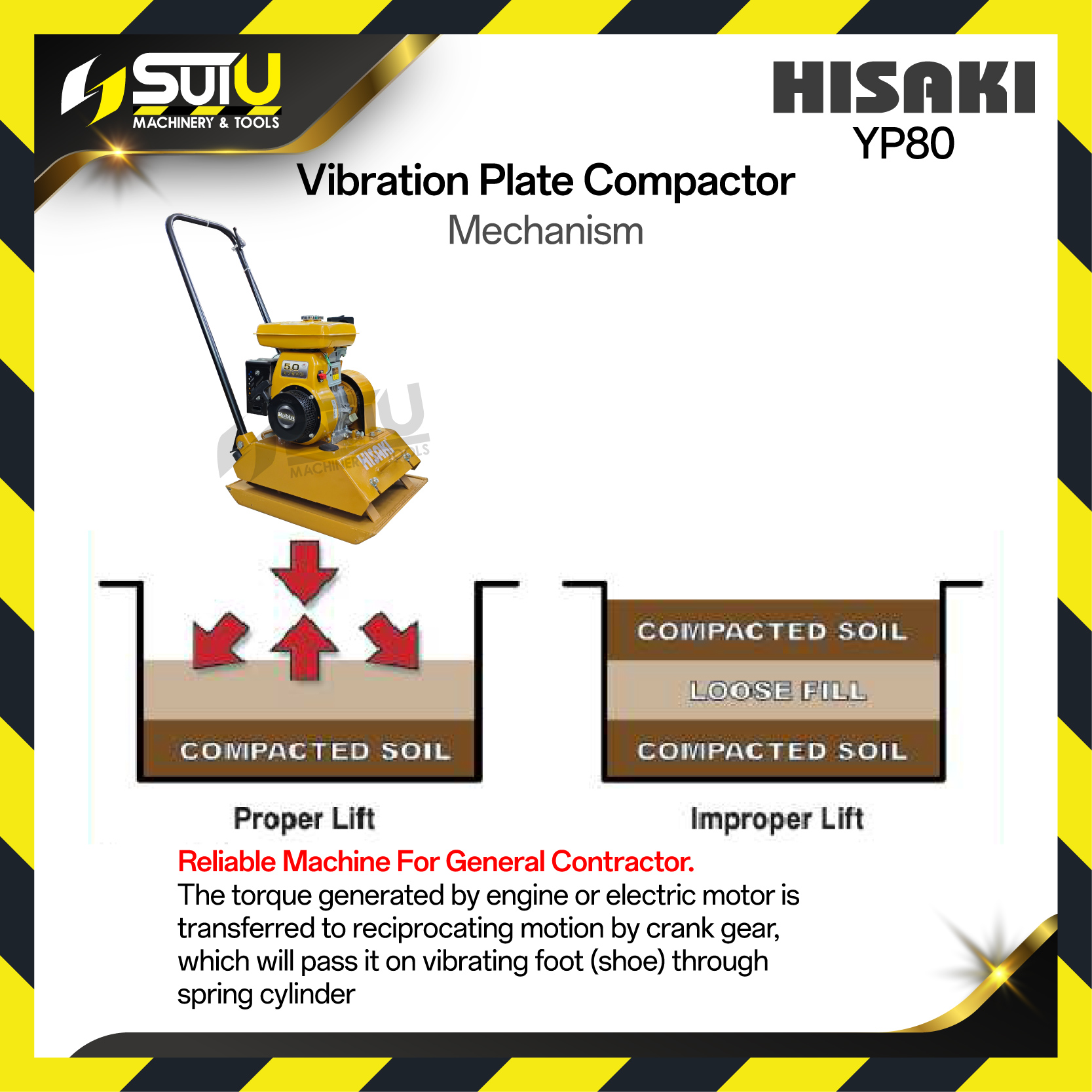

- The torque generated by engine or electric motor is transferred to reciprocating motion by crank gear, which will pass it on vibrating foot (shoe) through spring cylinder
- Wear-resistant compaction steel base provides long lasting durability and better compaction finish.
- Durable rotor assembly and clutch pulley assembly saves maintenance cost.
- Heavy duty rubber mountings and rubber  absorbes made from natural rubber limits vibration towards handle to better protect engine and operator.
- Strong steel belt cover to prevent dirt out of the belt and higher safety
- Equipped with heavy duty clutch and strong exciter.

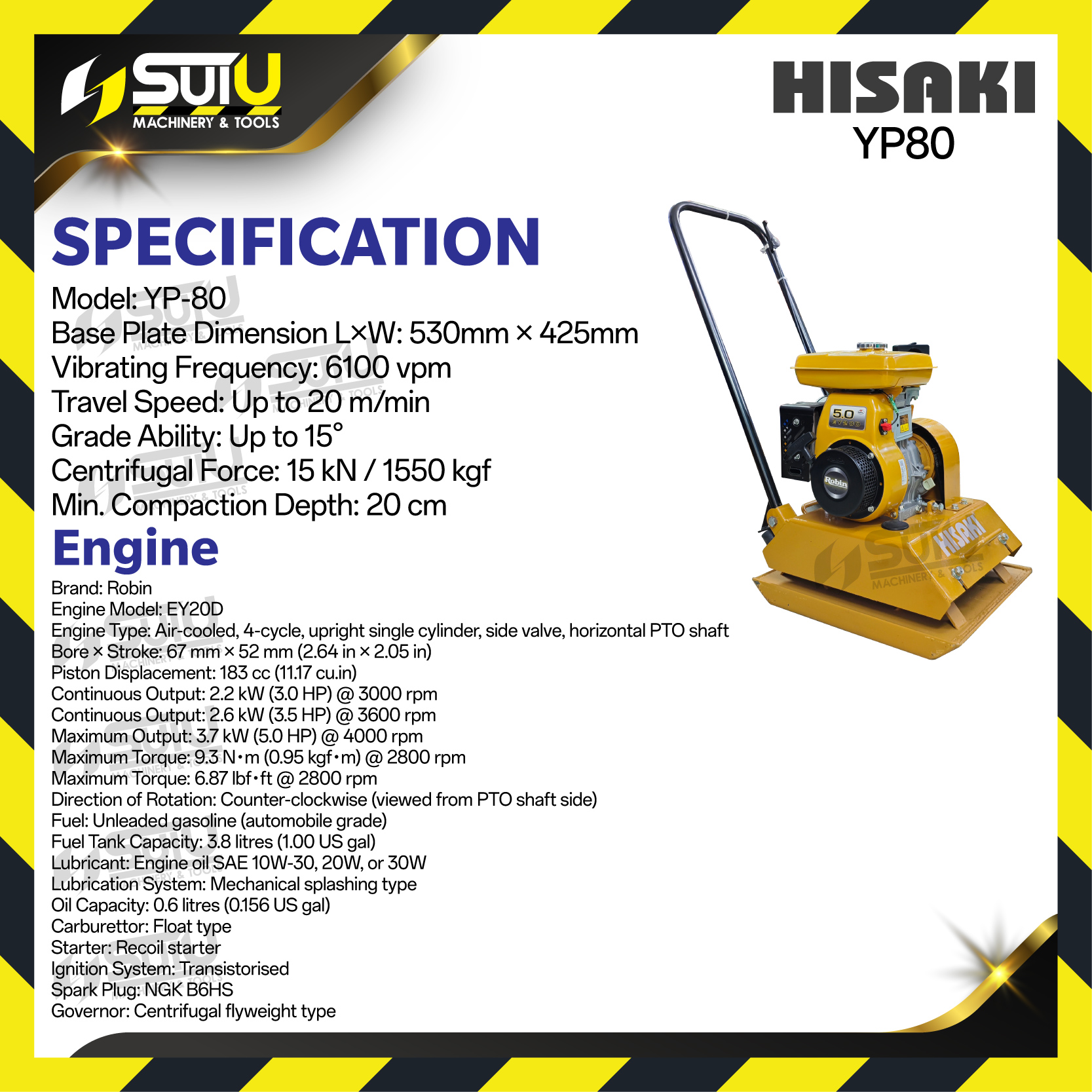

⭐️SPECIFICATIONS⭐️

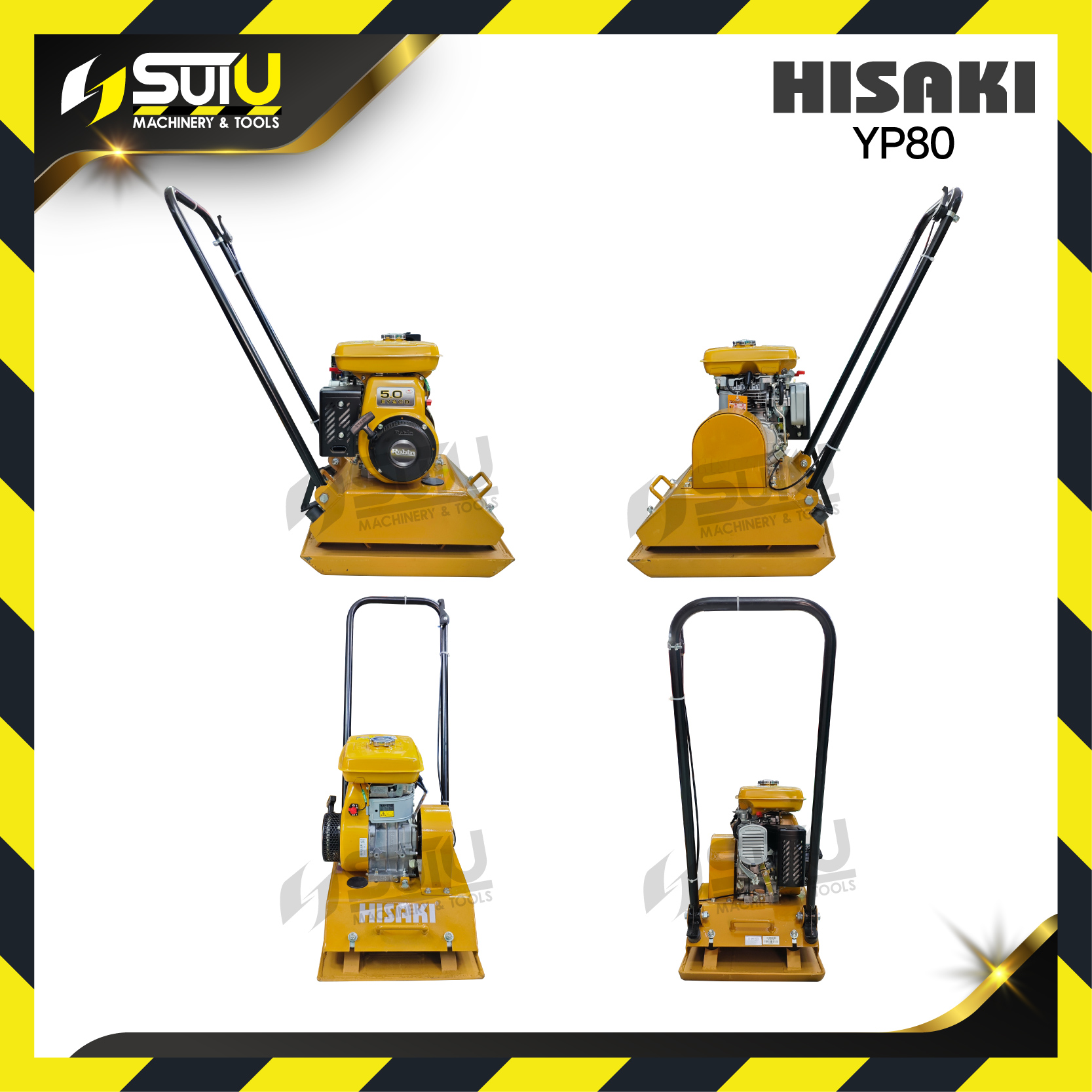

▪️ Vibration Plate Compactor
- Model : YP-80
- Base Plate Dimension : L530mm x W425mm
- Vibrating Frequency (vpm) : 6100
- Travel Speed (m/min) : Up to 20
- Grade Ability (deg) : Up to 15
- Centrifugal Force (kN/kgf) : 15/1550
- Min compaction depth (cm) : 20

▪️ Engine
→ HISAKI LP220Q
- Engine Type : Single cylinder , 4 stroke (OHV)
- Bore*Stroke : 70*55(mm)
- Displacement : 212CC
- Compression ratio : 9.0:1
- Net Power : 4.1kW / 3600RPM
- Net Torque : 12NM / 2500RPM
- PTO Shaft rotation : Counter clockwise (horizontal shaft output)
- Ignition System : Electromagnetic ignition
- Starting system : Recoil
- Carburetor : Float carburetor
- Oil capacity : 0.6L
- Fuel tank capacity : 3.4L

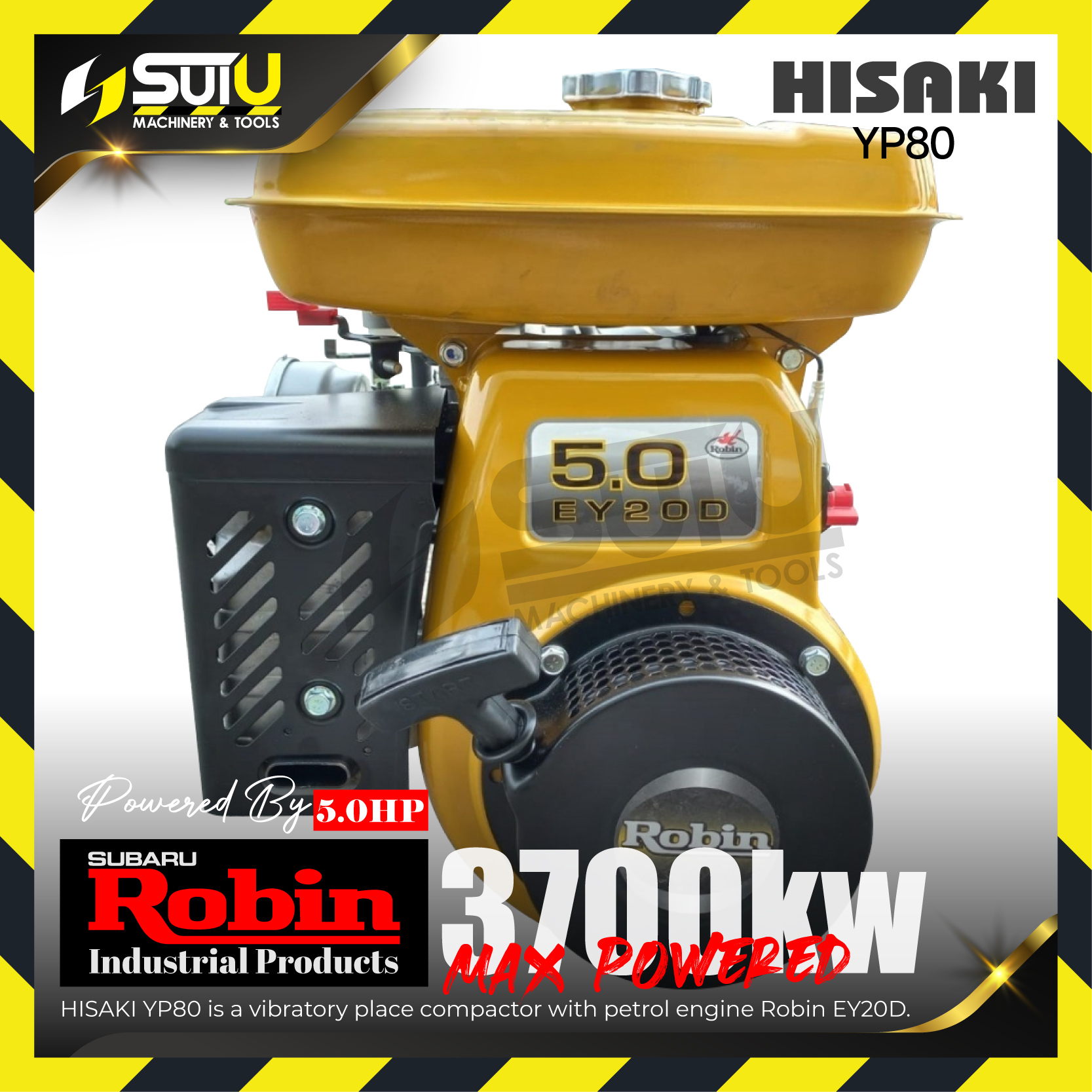

→ Robin EY-20D
- Engine type : Air-cooled , 4 cycle upright single cylinder , side valve, horizontal PTO shaft
- Bore x stroke : 67mm x 52mm (2.64in x 2.05in)
- Piston Displacement : 183cc (11.17cu.in)
- Continous output : 2.2kW (3HP) @ 3000RPM / 2.6kW (3.5HP) @ 3600RPM
- Maximum Output : 3.7kW (5.0HP) @4000RPM
- Maximum Torque : 9.3NM (0.95kgfm) @2800RPM / 6.87lbf-ft
- Direction of rotation : Counter-clockwise (viewed from PTO shaft side)
- Fuel : Unleaded gasoline (automobile grade)
- Fuel tank capacity : 3.8 Litres (1.00 US gal)
- Lubricant Engine oil SAE 10W-30 , 20W , 30W
- Lubrication system : Mechanical splashing type
- Oil capacity : 0.6 Litres (0.156 US gal)
- Carburetor : Float type
- Starter : Recoil Starter
- Ignition system : Transistorized
- Spark plug : NGK B6HS
- Governor : Centrifugal flyweight type

⭐️SELECTIONS⭐️
1. YP80 with Hisaki LP220Q Engine
2. YP80 with Robin EY-20D Engine
