[SINGLE / THREE PHASE] LEO ECHM4-40 / ECH4-40 1.0HP Horizontal Multistage Pump 0.75kW (Max Head 36-17M)
Category: Other
Specifications
SKU
sui u - LEO ECHM4-40 / ECH4-40
Weight(gram)
13
Dimension
45 cm (Length) x 24 cm (Width) x 26 cm (Height)
Selections
Single Phase 220V (ECHM4-40), Three Phase 415V (ECH4-40)
Details

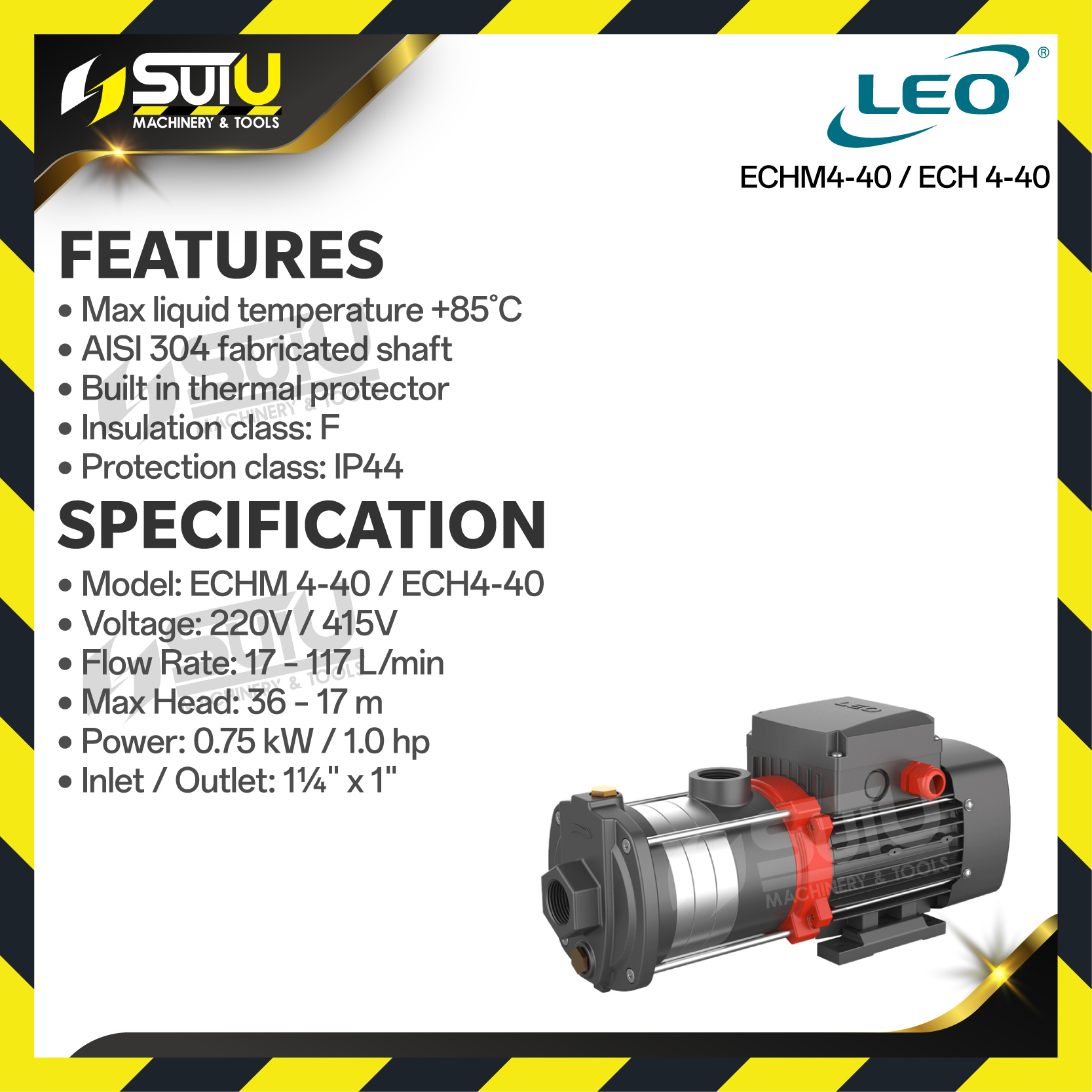

⭐️FEATURES⭐️
- Max liquid temperature +85°
- AISI 304 fabricated shaft

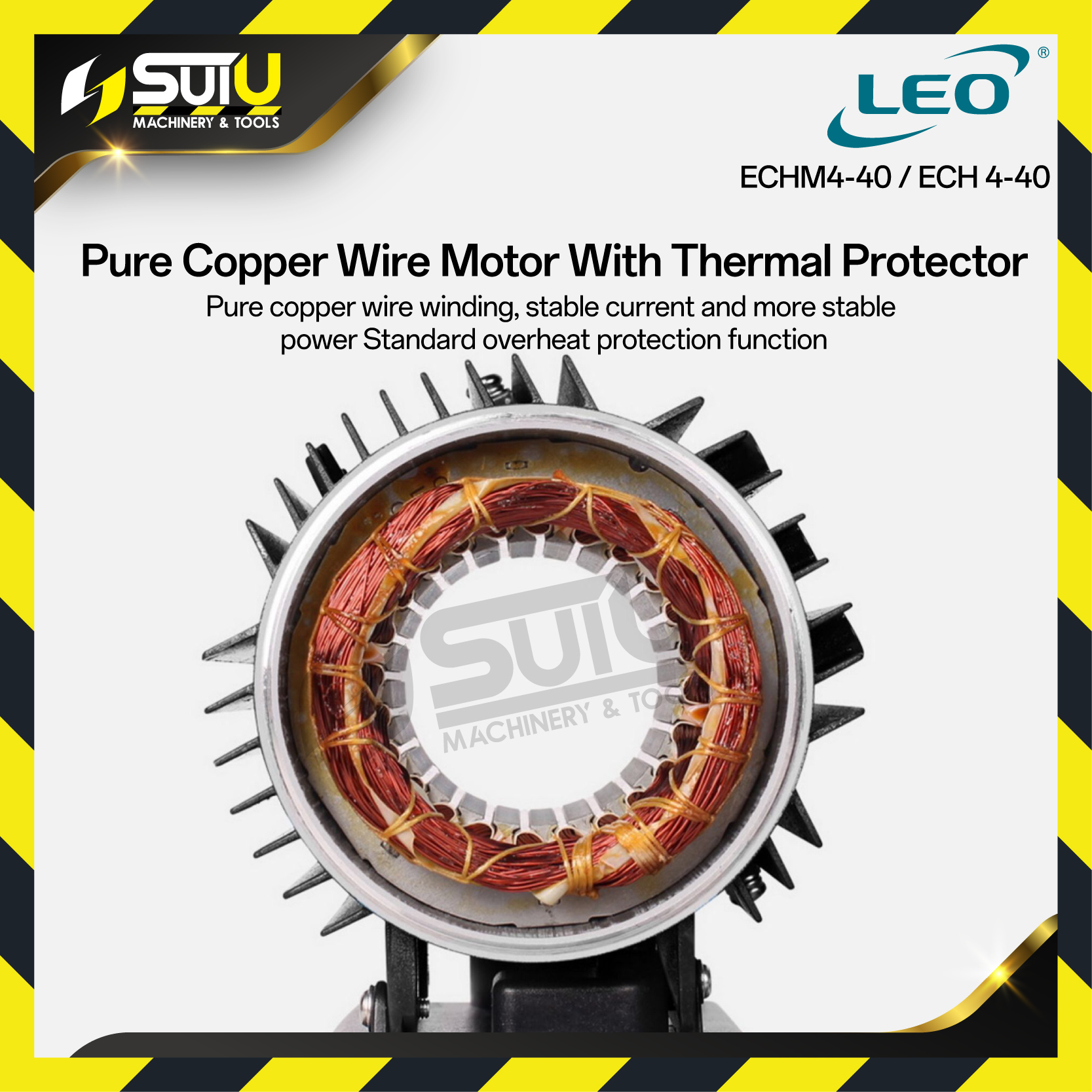

- Built in thermal protector
- Insulation Class : F
- Protection Class : IP44
⭐️SPECIFICATIONS⭐️
▪️ ECHM4-40 (SINGLE PHASE)
- Voltage : 220V
- Flow Rate : 17-117L/min
- Max Head : 36-17M
- Power : 0.75kW / 1.0HP
- Inlet / Outlet : 1 1/4" x 1"
▪️ ECH4-40 (THREE PHASE)
- Voltage : 415V
- Flow Rate : 17-117L/min
- Max Head : 36-17M
- Power : 0.75kW / 1.0HP
- Inlet / Outlet : 1 1/4" x 1"
⭐️SELECTIONS⭐️
1. ECHM4-40 (Single Phase)
2. ECH4-40 (Three Phase)
