[SINGLE / THREE PHASE] LEO ECHM4-50 / ECH4-50 1.5HP Horizontal Multistage Pump 1.1kW (Max Head 46-21M)
Category: Other
Specifications
SKU
sui u - LEO ECHM4-50 / ECH4-50
Weight(gram)
13
Dimension
45 cm (Length) x 24 cm (Width) x 26 cm (Height)
Selections
Single Phase 220V (ECHM4-50), Three Phase 415V (ECH4-50)
Details
⭐️FEATURES⭐️
- Max liquid temperature +85°
- AISI 304 fabricated shaft

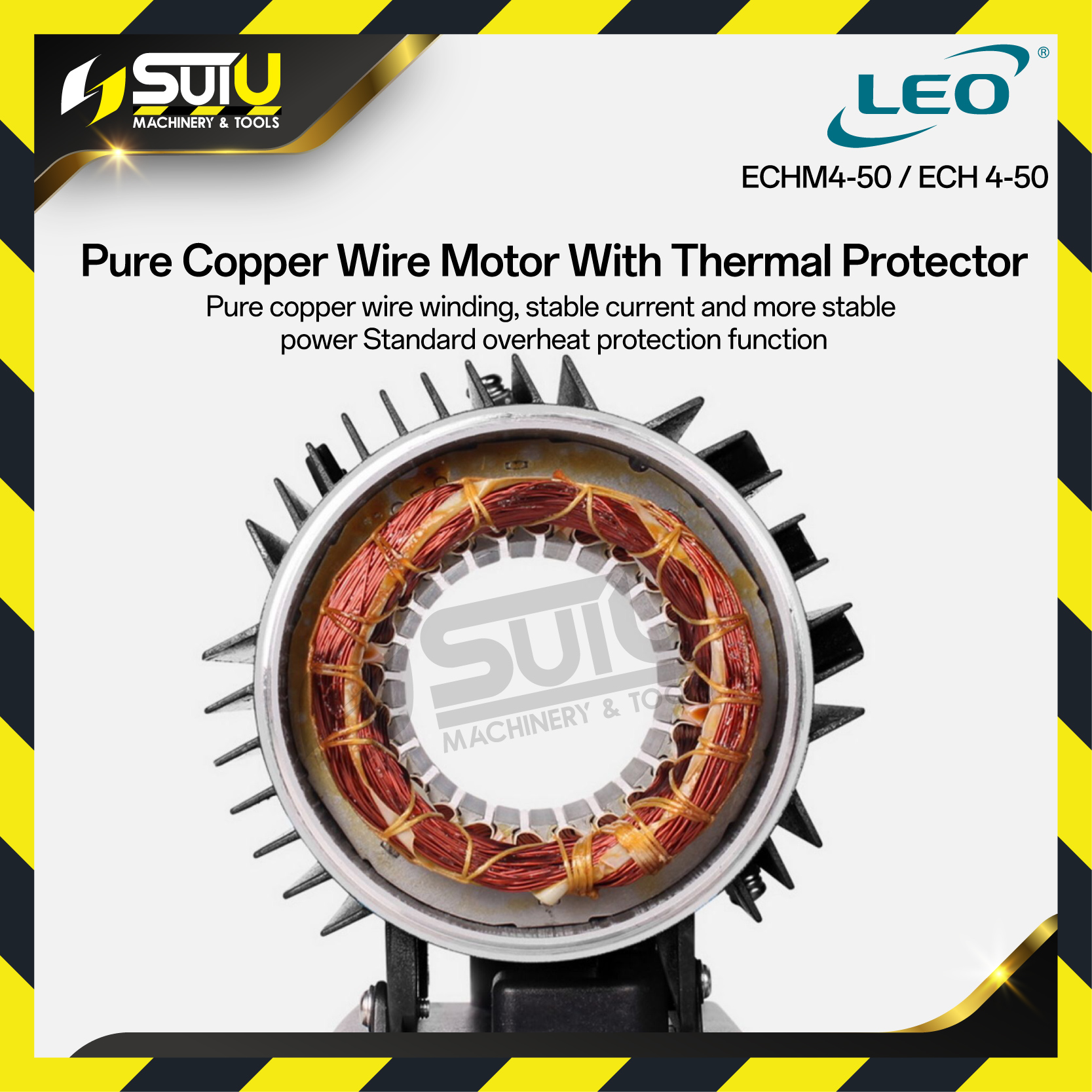

- Built in thermal protector
- Insulation Class : F
- Protection Class : IP44
⭐️SPECIFICATIONS⭐️
▪️ ECHM4-50 (SINGLE PHASE)
- Voltage : 220V
- Flow Rate : 17-117L/min
- Max Head : 46-21M
- Power : 1.1kW / 1.5HP
- Inlet / Outlet : 1 ¼" x 1"
▪️ ECH4-50 (THREE PHASE)
- Voltage : 415V
- Flow Rate : 17-117L/min
- Max Head : 46-21M
- Power :1.1kW / 1.5HP
- Inlet / Outlet : 1 ¼" x 1"
⭐️SELECTIONS⭐️
1. ECHM4-50 (Single Phase)
2. ECH4-50 (Three Phase)
