[ SINGLE / THREE PHASE ] LEO ACM75B2 / AC75B2 1.0HP Centrifugal Pump 0.75kW
Category: Other
Specifications
SKU
sui u - LEO ACM75B2 / AC75B2
Weight(gram)
10
Dimension
21 cm (Length) x 31 cm (Width) x 26 cm (Height)
Selections
Single Phase 220V (ACM75B2), Three Phase 415V (AC75B2)
Details

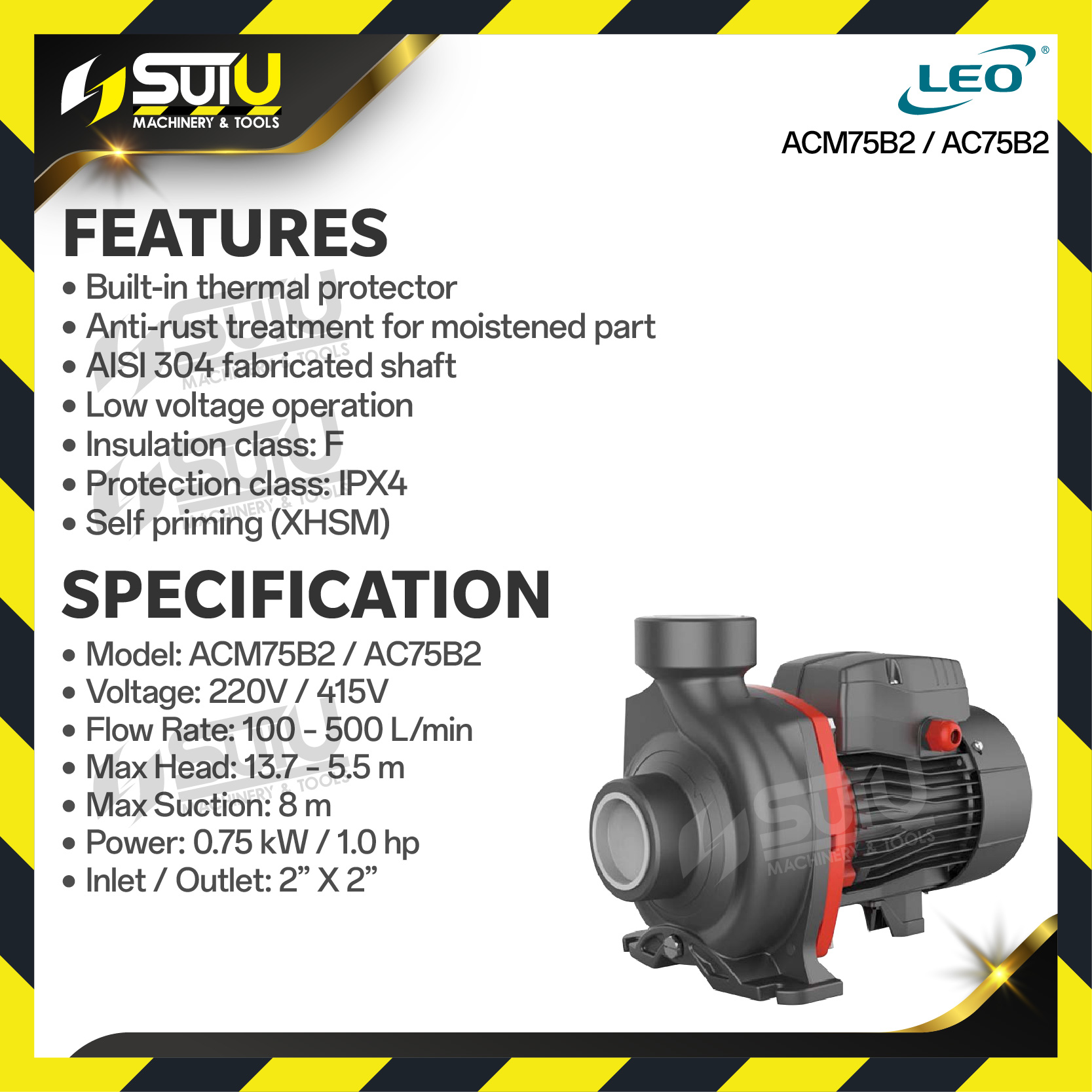

⭐️FEATURES⭐️

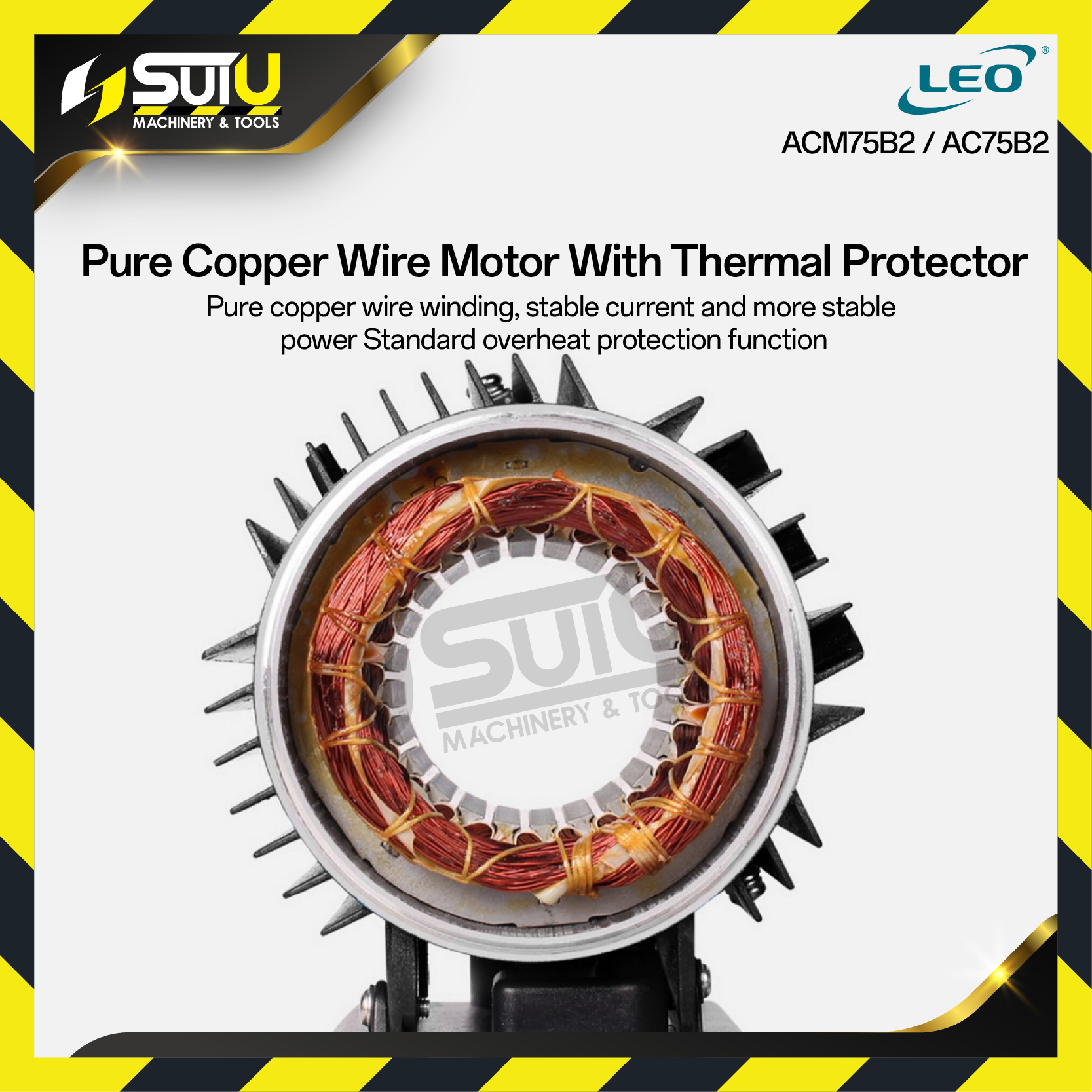

- Built in thermal protector
- Anti rust treatment for moistened part
- AISI 304 fabricated shaft
- Low voltage operation
- Insulation Class :F
- Protection Class : IPX4
- Self Priming (XHSM)
⭐️SPECIFICATIONS⭐️
- Model : ACM75B2 / AC75B2
- Voltage : 220V / 415V

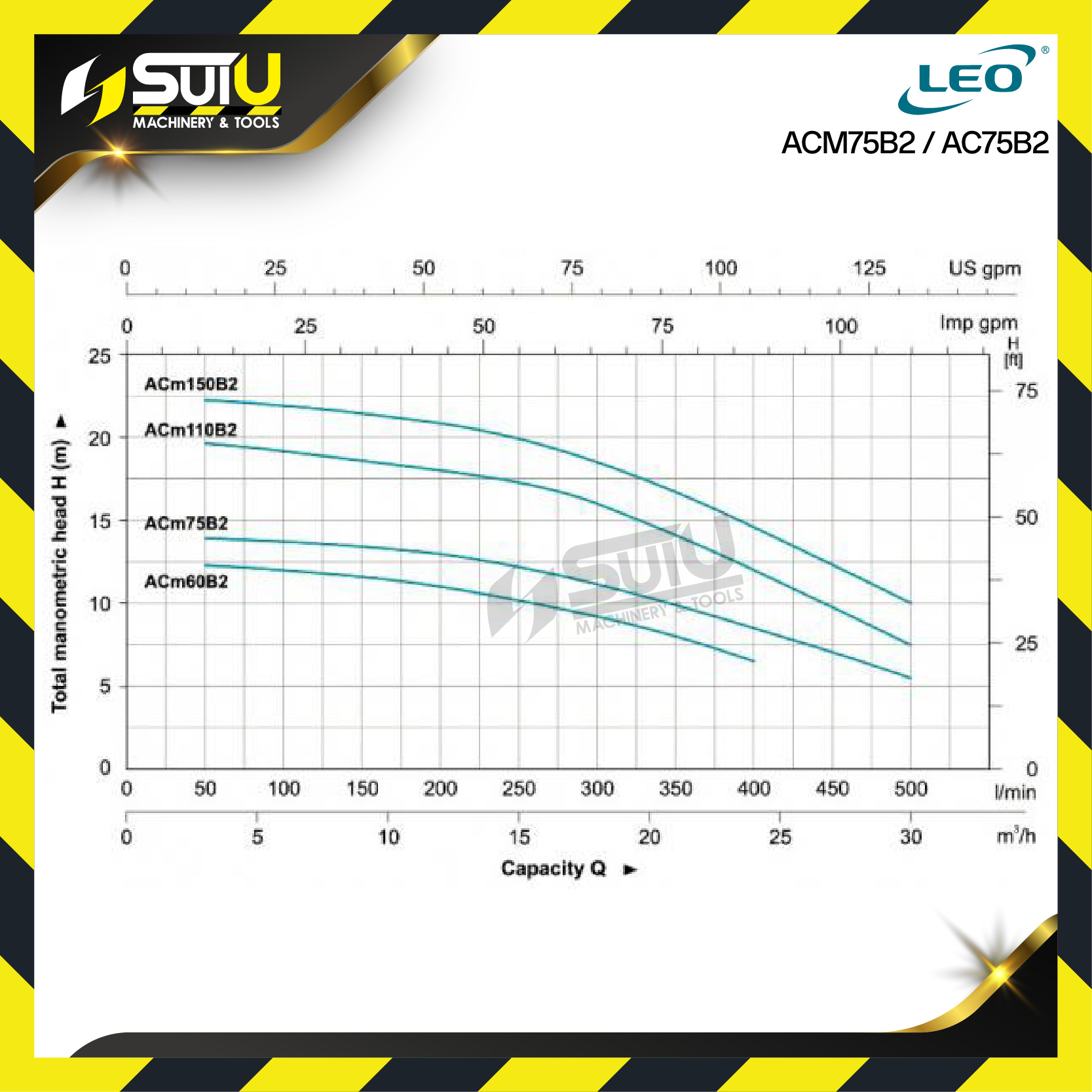

- Flow rate : 100 - 500L/min
- Max Head : 13.7 - 5.5M
- Max suction : 8M
- Power : 0.75kW / 1.0HP
- Inlet / outlet : 2" x 2"
⭐️SELECTIONS⭐️
1. ACM75B2 (Single Phase 220V)
2. AC75B2 (Three Phase 415V)
