Details

---

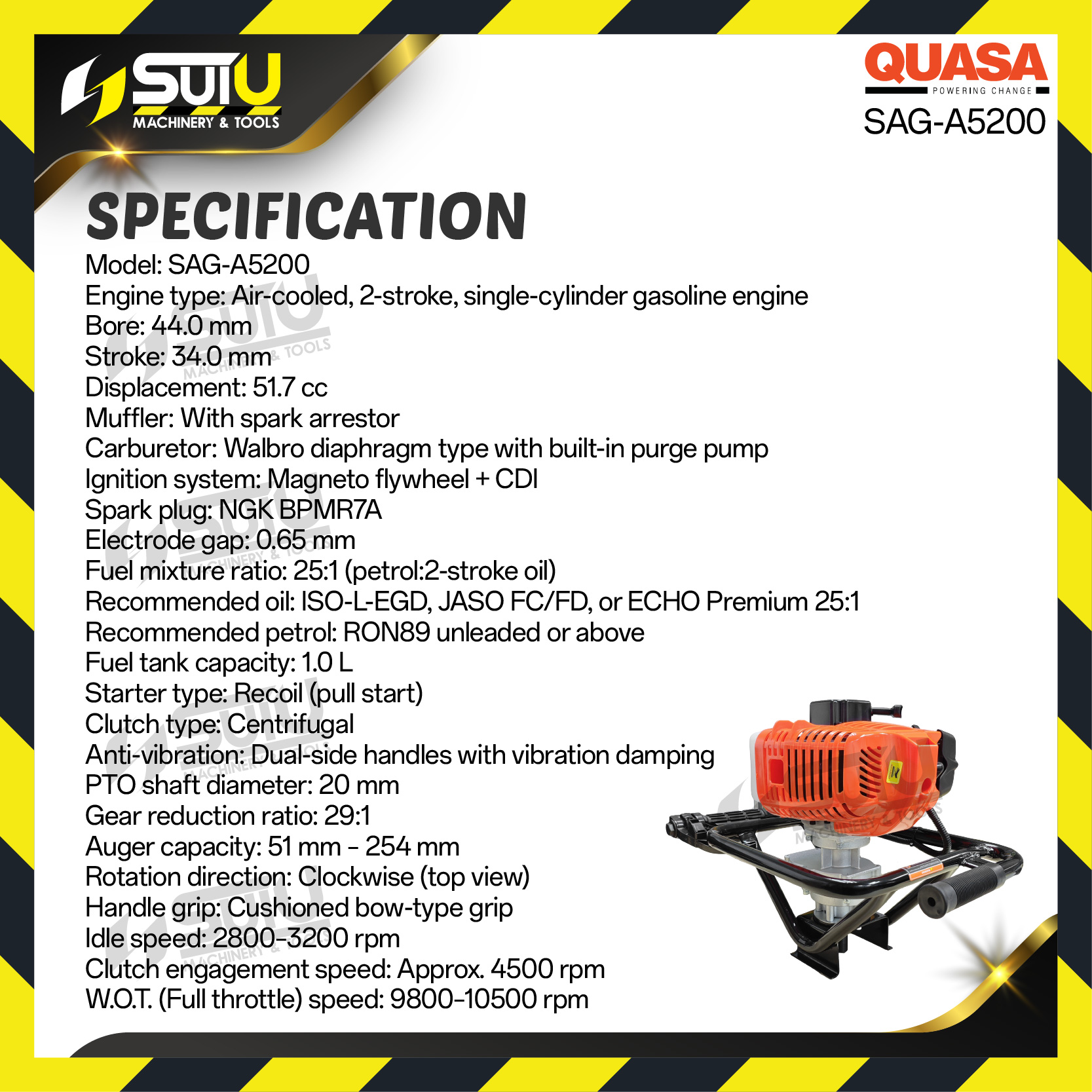

⭐️SPECIFICATIONS⭐️
- Model : SAG-AG5300

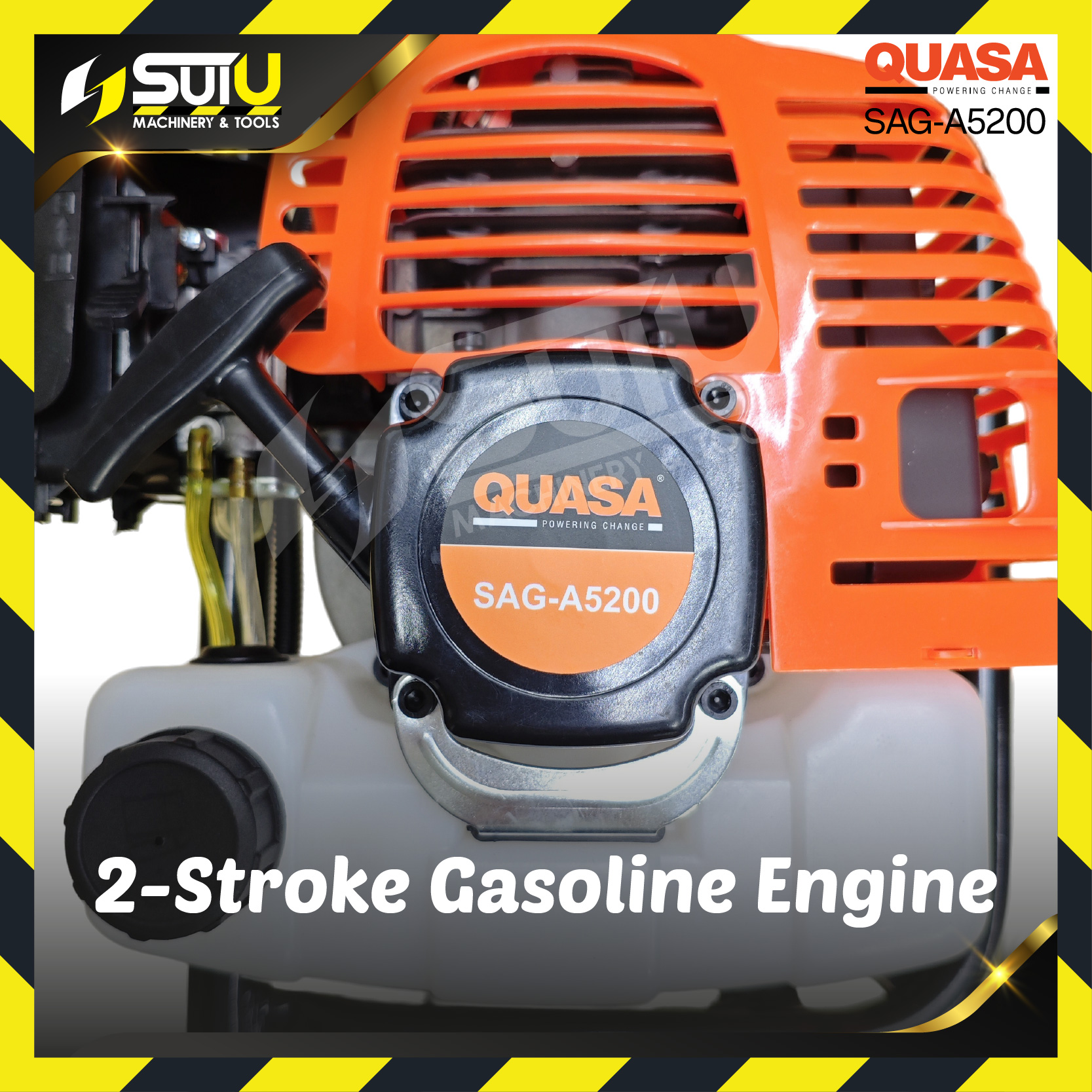

- Engine Type : Air cooled , 2 stroke , single cylinder gasoline engine
- Bore : 44.0MM
- Stroke : 34.0MM
- Displacement : 51.7CC
- Muffler : With Spark Arrestor

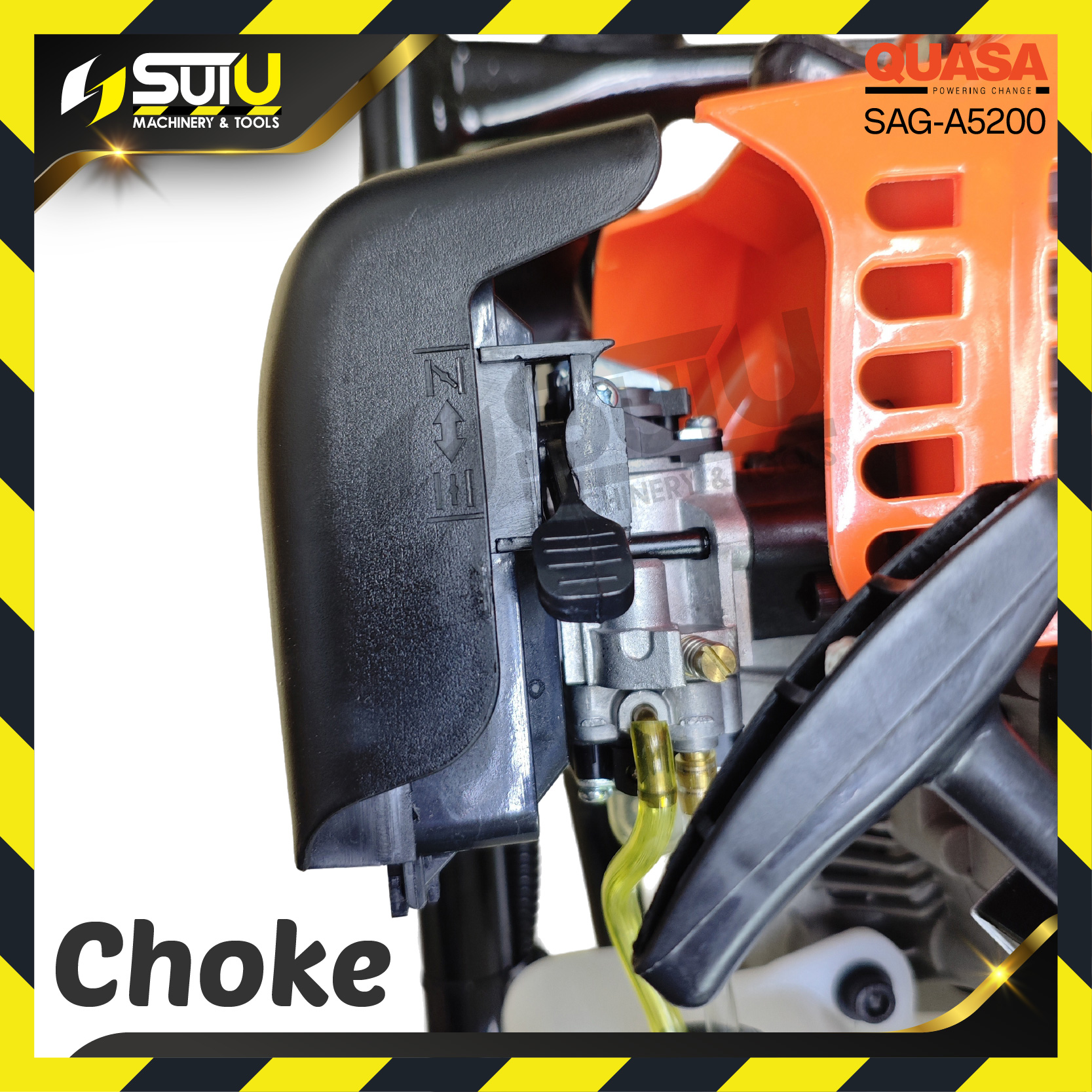

- Carburetor : Walbro diaphragm type with built in purge pump
- Ignition system : Magneto flywheel + CDI
- Spark Plug : NGK BRMR7A
- Electrode gap : 0.65mm
- Fuel mixture ratio : 25:1 (Petrol : 2 stroke oil)
- Recommended oil : ISO-L-EGD, JASO FC / FD or echo premium 25:1
- Recommended petrol : RON89 unleaded or above

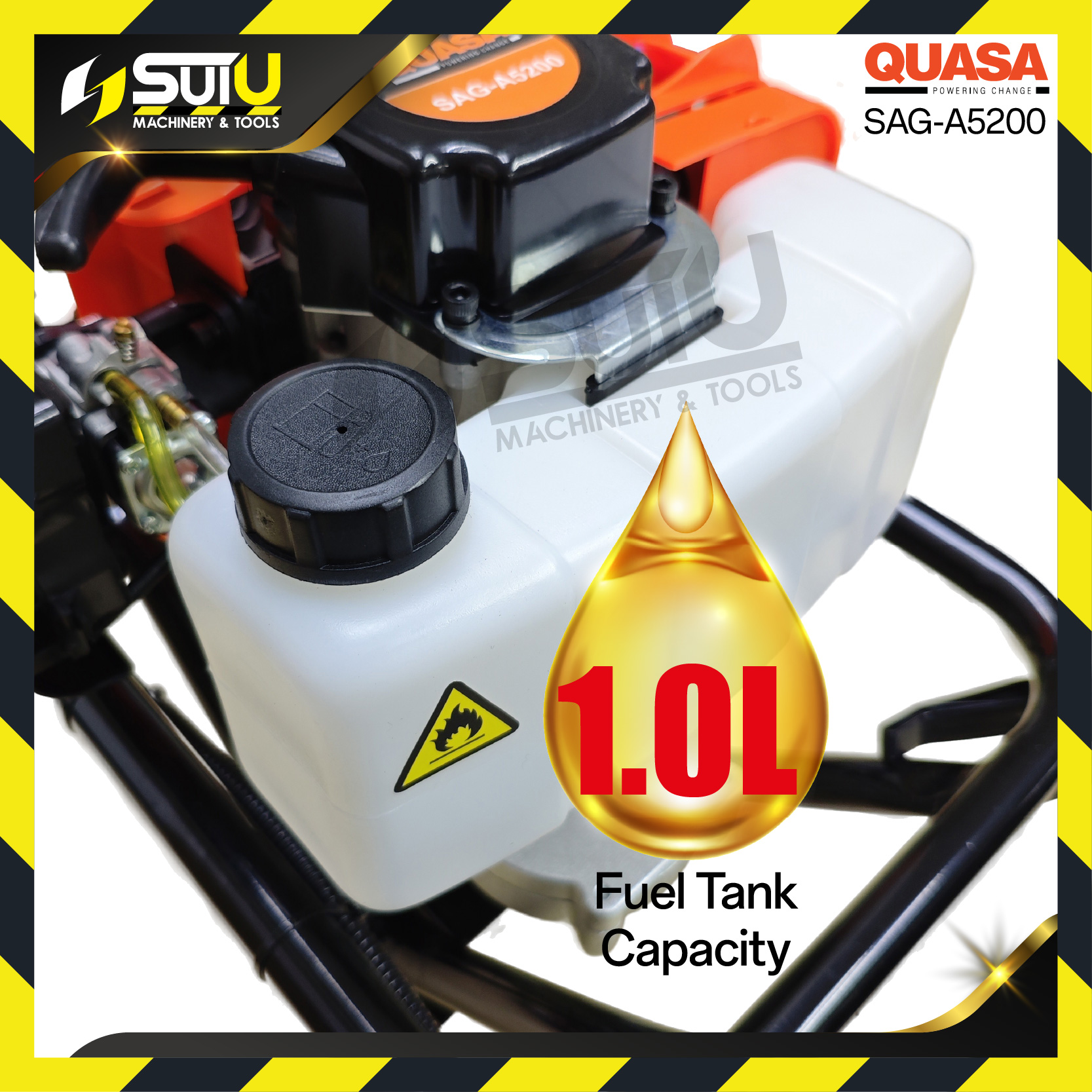

- Fuel tank capacity : 1.0L
- Starter type : recoil (pull start)
- Clutch type : Centrifugal
- Anti-vibration : Dual side handles with vibration damping
- PTO shaft diameter : 20mm
- Gear reduction ratio : 29:1

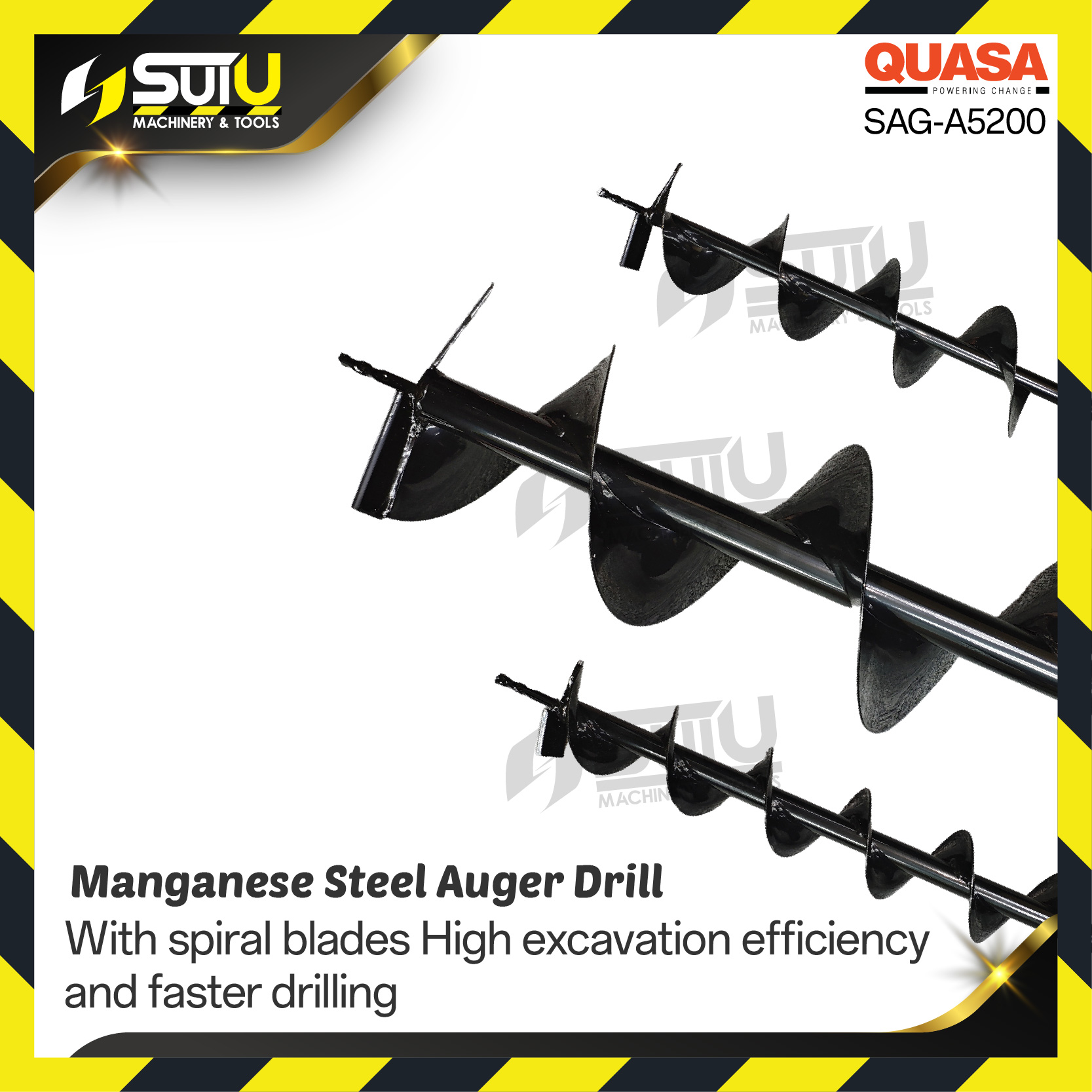

- Auger capacity : 51mm - 254mm
- Rotation Direction : Clockwise (Top view)
- Handle grip : Cushioned bow type grip
- Idle Speed : 2800 - 3200RPM
- Clutch engagement speed : Approx 4500RPM
- W.O.T (Full throttle) Speed : 9800 - 10500RPM
