Details

---

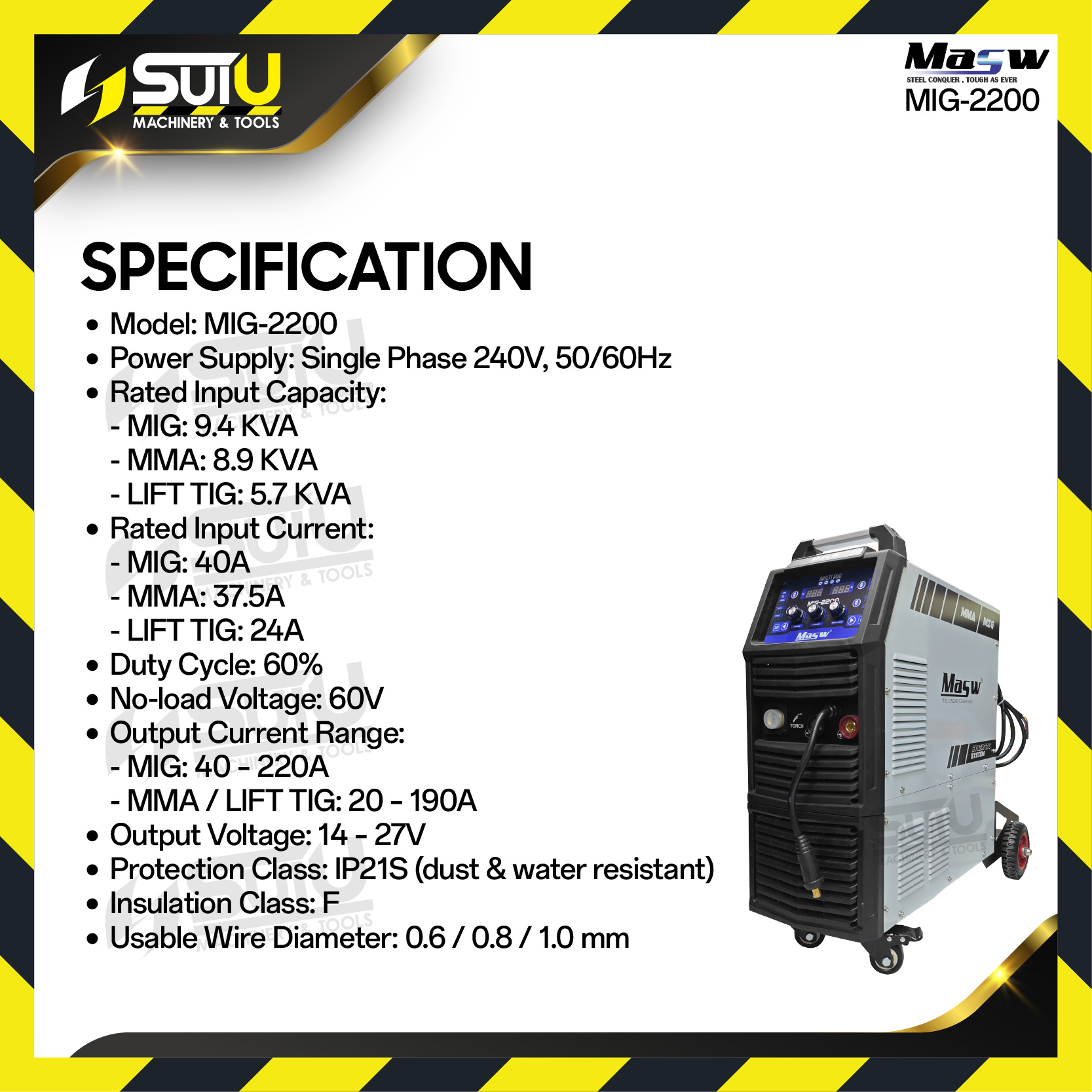

⭐️SPECIFICATIONS⭐️
- Model : MIG-2200
- Power Supply : Single Phase 240V , 50/60Hz
- Rated Input Capacity :
* MIG: 9.4 kVA
* MMA : 8.9kVA
- Lift TIG : 5.7kVA
- Rated Input Current
* MIG : 40A
* MMA : 37.5A
* LIFT TIG : 24A
- Duty cycle : 60%
- No-Load Voltage : 60V
- Output Current Range :
* MIG : 40-220A
* MMA / LIFT TIG : 20-190A
- Output Voltage : 14-27V
- Protection Class : IP21S (Dust & water resistant)
- Insulation Class : F
- Usable wire diameter : 0.6 / 0.8 / 1.0MM
